Airflow Migration Tutorial: Migrating Assets#

Previously, we completed the "Observe" stage of the Airflow migration process by encoding the assets that are produced by each task. We also introduced partitioning to those assets.

Up until now, we have not touched the Airflow code base at all. Now it's time to begin the actual migration process.

Once you have created corresponding definitions in Dagster to your Airflow tasks, you can proxy execution to Dagster on a per-task basis while Airflow is still controlling scheduling and orchestration. Once a task has been proxied, Airflow will kick off materializations of corresponding Dagster assets in place of executing the business logic of that task.

To begin proxying tasks in a DAG, first you will need a file to track proxying state. In your Airflow DAG directory, create a proxied_state folder, and in it create a yaml file with the same name as your DAG. The included example at airflow_dags/proxied_state is used by make airflow_run, and can be used as a template for your own proxied state files.

Given our example DAG rebuild_customers_list with three tasks, load_raw_customers, run_dbt_model, and export_customers, proxied_state/rebuild_customers_list.yaml should look like the following:

tasks:
  - id: load_raw_customers
    proxied: False
  - id: build_dbt_models
    proxied: False
  - id: export_customers
    proxied: False

Next, you will need to modify your Airflow DAG to make it aware of the proxied state. This is already done in the example DAG:

# Dags file can be found at tutorial_example/airflow_dags/dags.py
from pathlib import Path

from airflow import DAG
from dagster_airlift.in_airflow import proxying_to_dagster
from dagster_airlift.in_airflow.proxied_state import load_proxied_state_from_yaml

dag = DAG("rebuild_customers_list", ...)

...

# Set this to True to begin the proxying process
PROXYING = False

if PROXYING:
    proxying_to_dagster(
        global_vars=globals(),
        proxied_state=load_proxied_state_from_yaml(Path(__file__).parent / "proxied_state"),
    )

Set PROXYING to True or eliminate the if statement.

The DAG will now display its proxied state in the Airflow UI. (There is some latency as Airflow evaluates the Python file periodically.)

Migrating individual tasks#

In order to proxy a task, you must do two things:

1. First, ensure all associated assets are executable in Dagster by providing asset definitions in place of bare asset specs.
2. The proxied: False status in the proxied_state YAML folder must be adjusted to proxied: True.

Any task marked as proxied will use the DefaultProxyTaskToDagsterOperator when executed as part of the DAG. This operator will use the Dagster GraphQL API to initiate a Dagster run of the assets corresponding to the task.

The proxied file acts as the source of truth for proxied state. The information is attached to the DAG and then accessed by Dagster via the REST API.

A task which has been proxied can be easily toggled back to run in Airflow (for example, if a bug in implementation was encountered) simply by editing the file to proxied: False.

Migrating common operators#

For some common operator patterns, like our dbt operator, Dagster supplies factories to build software defined assets for our tasks. In fact, the @dbt_assets decorator used earlier already backs its assets with definitions, so we can toggle the proxied state of the build_dbt_models task to proxied: True in the proxied state file:

tasks:
  - id: load_raw_customers
    proxied: False
  - id: build_dbt_models
    proxied: True
  - id: export_customers
    proxied: False

Important: It may take up to 30 seconds for the proxied state in the Airflow UI to reflect this change. You must subsequently reload the definitions in Dagster via the UI or by restarting dagster dev.

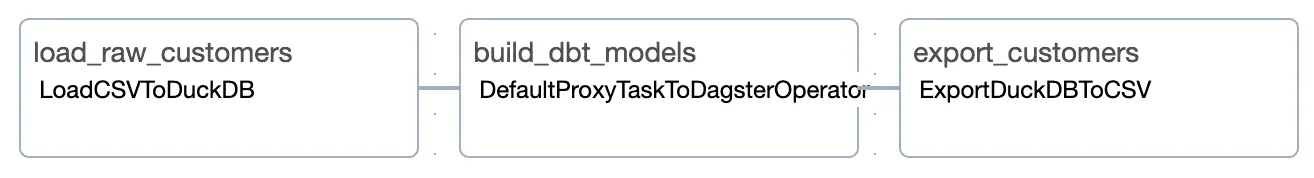

You can now run the rebuild_customers_list DAG in Airflow, and the build_dbt_models task will be executed in a Dagster run:

You'll note that we proxied a task in the middle of the Airflow DAG. The Airflow DAG structure and execution history is stable in the Airflow UI, but execution of build_dbt_models has moved to Dagster.

Migrating the remaining custom operators#

For all other operator types, we will need to build our own asset definitions. We recommend creating a factory function whose arguments match the inputs to your Airflow operator. Then, you can use this factory to build definitions for each Airflow task.

For example, our load_raw_customers task uses a custom LoadCSVToDuckDB operator. We'll define a function load_csv_to_duckdb_defs factory to build corresponding software-defined assets. Similarly for export_customers we'll define a function export_duckdb_to_csv_defs to build SDAs:

import os
from pathlib import Path

from dagster import (
    AssetExecutionContext,
    AssetsDefinition,
    AssetSpec,
    DailyPartitionsDefinition,
    Definitions,
    materialize,
    multi_asset,
)
from dagster._time import get_current_datetime_midnight
from dagster_airlift.core import (
    AirflowBasicAuthBackend,
    AirflowInstance,
    assets_with_task_mappings,
    build_defs_from_airflow_instance,
)
from dagster_dbt import DbtCliResource, DbtProject, dbt_assets

# Code also invoked from Airflow
from tutorial_example.shared.export_duckdb_to_csv import ExportDuckDbToCsvArgs, export_duckdb_to_csv
from tutorial_example.shared.load_csv_to_duckdb import LoadCsvToDuckDbArgs, load_csv_to_duckdb

PARTITIONS_DEF = DailyPartitionsDefinition(start_date=get_current_datetime_midnight())


def dbt_project_path() -> Path:
    env_val = os.getenv("TUTORIAL_DBT_PROJECT_DIR")
    assert env_val, "TUTORIAL_DBT_PROJECT_DIR must be set"
    return Path(env_val)


def airflow_dags_path() -> Path:
    return Path(os.environ["TUTORIAL_EXAMPLE_DIR"]) / "tutorial_example" / "airflow_dags"


def load_csv_to_duckdb_asset(spec: AssetSpec, args: LoadCsvToDuckDbArgs) -> AssetsDefinition:
    @multi_asset(name=f"load_{args.table_name}", specs=[spec])
    def _multi_asset() -> None:
        load_csv_to_duckdb(args)

    return _multi_asset


def export_duckdb_to_csv_defs(spec: AssetSpec, args: ExportDuckDbToCsvArgs) -> AssetsDefinition:
    @multi_asset(name=f"export_{args.table_name}", specs=[spec])
    def _multi_asset() -> None:
        export_duckdb_to_csv(args)

    return _multi_asset


@dbt_assets(
    manifest=dbt_project_path() / "target" / "manifest.json",
    project=DbtProject(dbt_project_path()),
    partitions_def=PARTITIONS_DEF,
)
def dbt_project_assets(context: AssetExecutionContext, dbt: DbtCliResource):
    yield from dbt.cli(["build"], context=context).stream()


mapped_assets = assets_with_task_mappings(
    dag_id="rebuild_customers_list",
    task_mappings={
        "load_raw_customers": [
            load_csv_to_duckdb_asset(
                AssetSpec(key=["raw_data", "raw_customers"], partitions_def=PARTITIONS_DEF),
                LoadCsvToDuckDbArgs(
                    table_name="raw_customers",
                    csv_path=airflow_dags_path() / "raw_customers.csv",
                    duckdb_path=Path(os.environ["AIRFLOW_HOME"]) / "jaffle_shop.duckdb",
                    names=["id", "first_name", "last_name"],
                    duckdb_schema="raw_data",
                    duckdb_database_name="jaffle_shop",
                ),
            )
        ],
        "build_dbt_models":
        # load rich set of assets from dbt project
        [dbt_project_assets],
        "export_customers": [
            export_duckdb_to_csv_defs(
                AssetSpec(key="customers_csv", deps=["customers"], partitions_def=PARTITIONS_DEF),
                ExportDuckDbToCsvArgs(
                    table_name="customers",
                    csv_path=Path(os.environ["TUTORIAL_EXAMPLE_DIR"]) / "customers.csv",
                    duckdb_path=Path(os.environ["AIRFLOW_HOME"]) / "jaffle_shop.duckdb",
                    duckdb_database_name="jaffle_shop",
                ),
            )
        ],
    },
)


defs = build_defs_from_airflow_instance(
    airflow_instance=AirflowInstance(
        auth_backend=AirflowBasicAuthBackend(
            webserver_url="http://localhost:8080",
            username="admin",
            password="admin",
        ),
        name="airflow_instance_one",
    ),
    defs=Definitions(
        assets=mapped_assets,
        resources={"dbt": DbtCliResource(project_dir=dbt_project_path())},
    ),
)


if __name__ == "__main__":
    assert dbt_project_path().exists()
    # print(dbt_project_path().absolute())
    Definitions.validate_loadable(defs)
    materialize(defs.get_asset_graph().assets_defs)

We can then toggle the proxied state of the remaining tasks in the proxied_state file:

tasks:
  - id: load_raw_customers
    proxied: True
  - id: build_dbt_models
    proxied: True
  - id: export_customers
    proxied: True

Next steps#

Now that we've completed migration of the Airflow DAG, we can decomission it. Follow along here
